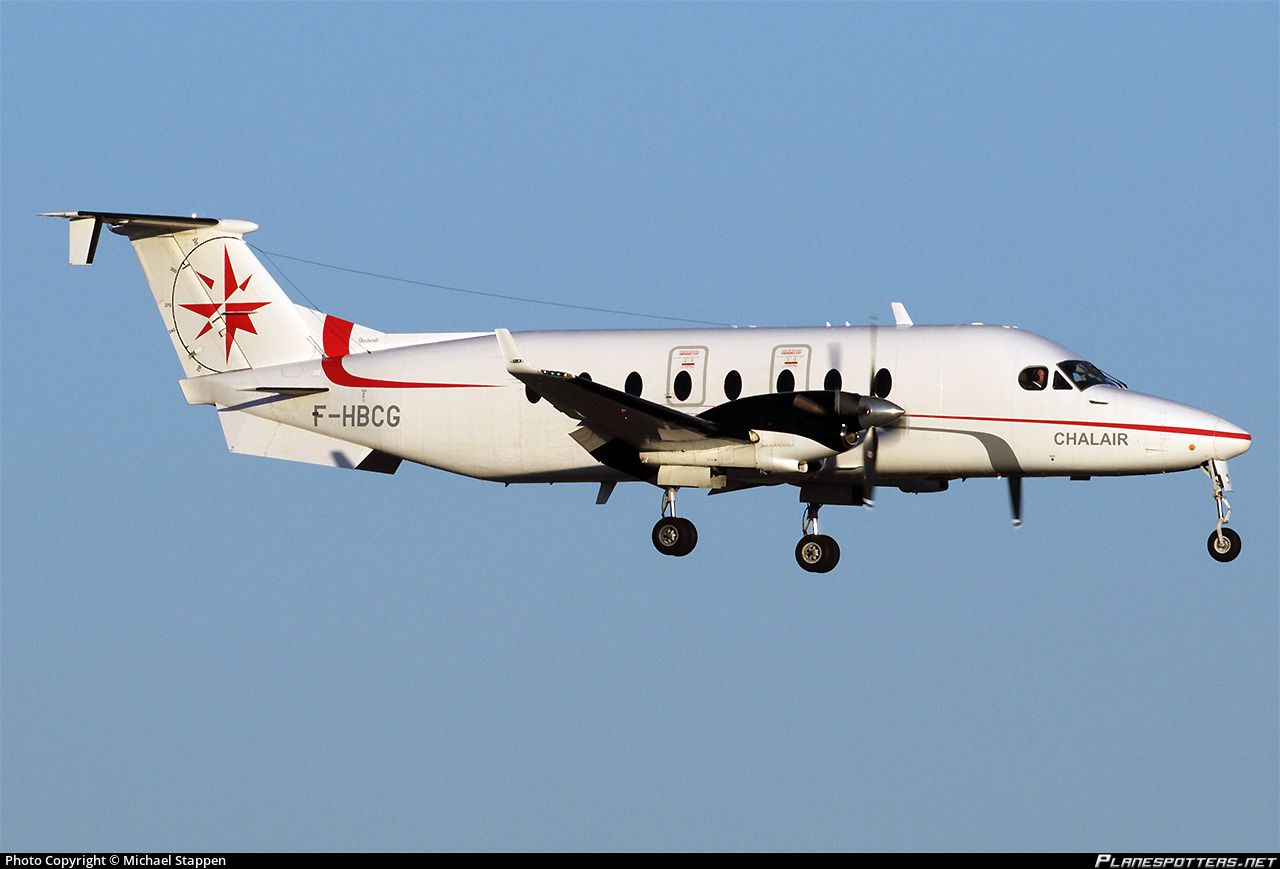

✈️ Technical Specifications - Beechcraft 1900D

✅General :

​​​​​​​

• Aircraft type: Regional jet, twin turboprop
• Manufacturer: Beechcraft(Textron Aviation)
• Crew: 2 pilots
• Passenger capacity: 19 passengers (standard configuration)

⚙️ Performance

• Cruising speed: 518 km/h (280 kt)
• Maximum speed: 536 km/h (290 kt)
• Operating ceiling: 7,620 m (25,000 ft)
• Maximum range: ~1,550 km (835 NM)
• Take-off distance (MTOW ): 1,219 m
• Landing distance: 914 m

🛠️ Motorization

• Engines: 2 × Pratt & Whitney Canada PT6A-67D
• Unit power: 1,279 shp (954 kW)

• Length: 17.63 m
• Wingspan: 17.64 m
• Height: 4.72 m
• Wing area: 28.8 m².

• Empty weight: ~5,690 kg
• Maximum take-off weight (MTOW ): 7,765 kg

• Configuration: Standing center aisle (1.83 m high), 1 seat on each side
• Access : Passenger side door + cargo door
• Pressurization: Yes
• Avionics: EFIS(Collins Pro Line 4 depending on version), autopilot, GPS depending on upgrade

• Excellent capacity on short or poorly prepared tracks
• Cost-effective for low-density regional flights
• Stand-up cabin (1900D version) much more popular than the 1900C
